wolfhece.PyHydrographs

Author: HECE - University of Liege, Pierre Archambeau, Utashi Ciraane Docile Date: 2024

Copyright (c) 2024 University of Liege. All rights reserved.

This script and its content are protected by copyright law. Unauthorized copying or distribution of this file, via any medium, is strictly prohibited.

Module Contents

class wolfhece.PyHydrographs.Constants(*args, **kwds)

Bases: enum.Enum

Contain the constants used throughout the module.

SEPARATOR = '\t'

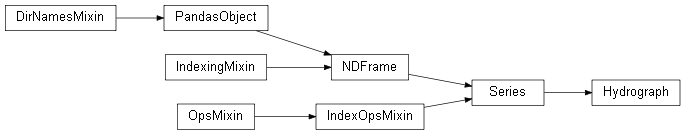

class wolfhece.PyHydrographs.Hydrograph(data=None, index=None, dtype=None, name=None, copy=None, file_path: str = '')

Bases: pandas.Series

A pandas series containing discharges (values) with their respective times of observation (indices).

@ The class is inherited which means all series method are available in this class escorted by a few other functions useful in the interaction with wolfhece tools.

write_as_wolf_file(file_path: str, writing_method: Literal['continuous', 'stepwise'] = 'continuous', epsilon: float = 1.0)

Write the hydrograph on the infiltration format of wolf models -> infil[n].tv file.

read_from_wolf_file(file_path: str, separator: Literal[',', ';', '\t'] = Constants.SEPARATOR.value) → dict

Read a wolf file at the format infil[n].tv and return its data as a dictionnary where:

• keys are times and,

• values are discharges.

_convert_date_format_to_duration_format(to_format: Literal['s', 'm', 'h', 'd'] = ['s'])

Convert a date format of indexes to a duration format.

set_zero_as_start()

Set the first time of the hydrograph as zero.

set_zero_and_convert_format(to_format: Literal['s', 'm', 'h', 'd'] = 's')

Set the first time of the hydrograph as zero and convert the format to a duration format.

class wolfhece.PyHydrographs.HydrOperations

Contains the operations that can be performed on Hydrographs.

substract_hydrograph(hydrograph1: Hydrograph, hydrograph2: Hydrograph) → Hydrograph

Substract two hydrographs and return the difference. The second hydrograph is substracted from the first.

Note

The Nan values in the difference are dropped to avoid

constraints of hydrographs index.

Parameters:

• hydrograph1 (Hydrograph) – The first hydrograph.

• hydrograph2 (Hydrograph) – The second hydrograph.

Returns:

The difference between the two hydrographs.

Return type:

Hydrograph

add_hydrograph(hydrograph1: Hydrograph, hydrograph2: Hydrograph) → Hydrograph

Add two hydrographs and return the sum. The second hydrograph is added to the first.

Note

The Nan values in the sum are dropped to avoid

constraints of hydrographs index.

Parameters:

• hydrograph1 (Hydrograph) – The first hydrograph.

• hydrograph2 (Hydrograph) – The second hydrograph.

Returns:

The sum of the two hydrographs.

Return type:

Hydrograph

add_list_of_hydrographs(hydrographs: list) → Hydrograph

Add a list of hydrographs and return the sum. The hydrographs are added one after the other to the first one.

Note

The Nan values in the sum are dropped to avoid

constraints of hydrographs index.

Parameters:

hydrographs (list) – The list of hydrographs.

Returns:

The sum of the hydrographs.

Return type:

Hydrograph

substract_list_of_hydrographs(hydrographs: list) → Hydrograph

Substract a list of hydrographs and return the difference. The hydrographs are substracted one after the other from the first one.

Note

The Nan values in the difference are dropped to avoid

constraints of hydrographs index.

Parameters:

hydrographs (list) – The list of hydrographs.

Returns:

The difference between the hydrographs.

Return type:

Hydrograph

static as_stepwise_Hydrograph(hydrograph: Hydrograph | pandas.Series, epsilon=1) → Hydrograph

Return a stepwise hydrograph from a given hydrograph.

The steps are made by shifting uniformly the time index by an epsilon value (default 1 is subtracted) while keeping the same discharge value. This is useful for harmonizing a hydrograph in a stepwise manner.

Parameters:

• hydrograph (Hydrograph or Pandas Series) – The hydrograph to be converted to stepwise format.

• epsilon (int, optional) – The value subtracted from each index of the hydrograph (each timestep), defaults to 1

Returns:

the stepwise hydrograph

Return type:

Hydrograph

static find_conversion_factor_from_seconds(convert_to: Literal['weeks', 'days', 'hours', 'minutes', 'seconds'] = 'seconds') → int

Find the conversion factor of a given time format to seconds.

Parameters:

convert_to (Literal['days', 'hours', 'minutes', 'seconds']) – The time format to convert to.

Returns:

The conversion factor.

Return type:

int

create_one_matplolib_axis(time: float, convert_to: Literal['weeks', 'days', 'hours', 'minutes', 'seconds'] = 'seconds', figsize: tuple = (30, 5), ylabel: str = 'Discharge ($m^3$/s)', tick_spacing: int = 1, x_start: int = 0, x_end: int = None, ax=None) → matplotlib.axes.Axes

Create a matplotlib axis with a date format of the number of days passed as argument.
